Celestron CGEM II 800 HD

 4.375,00

Only 1 left in stock (can be backordered)

Aperture (mm):
203.2
Focal length (mm):
2032
Speed ​​(f):
10
Maximum meaningful magnification (x):
480
Minimum meaningful magnification (x):
29
Maximum resolution (arcsec/pixel):
0.57
Image circle (mm):
Onbekend
Limiting magnitude:
14
 4.375,00
1 op voorraad
Available
Physical store
100% safe shopping
Large stock
Delivery service

Description

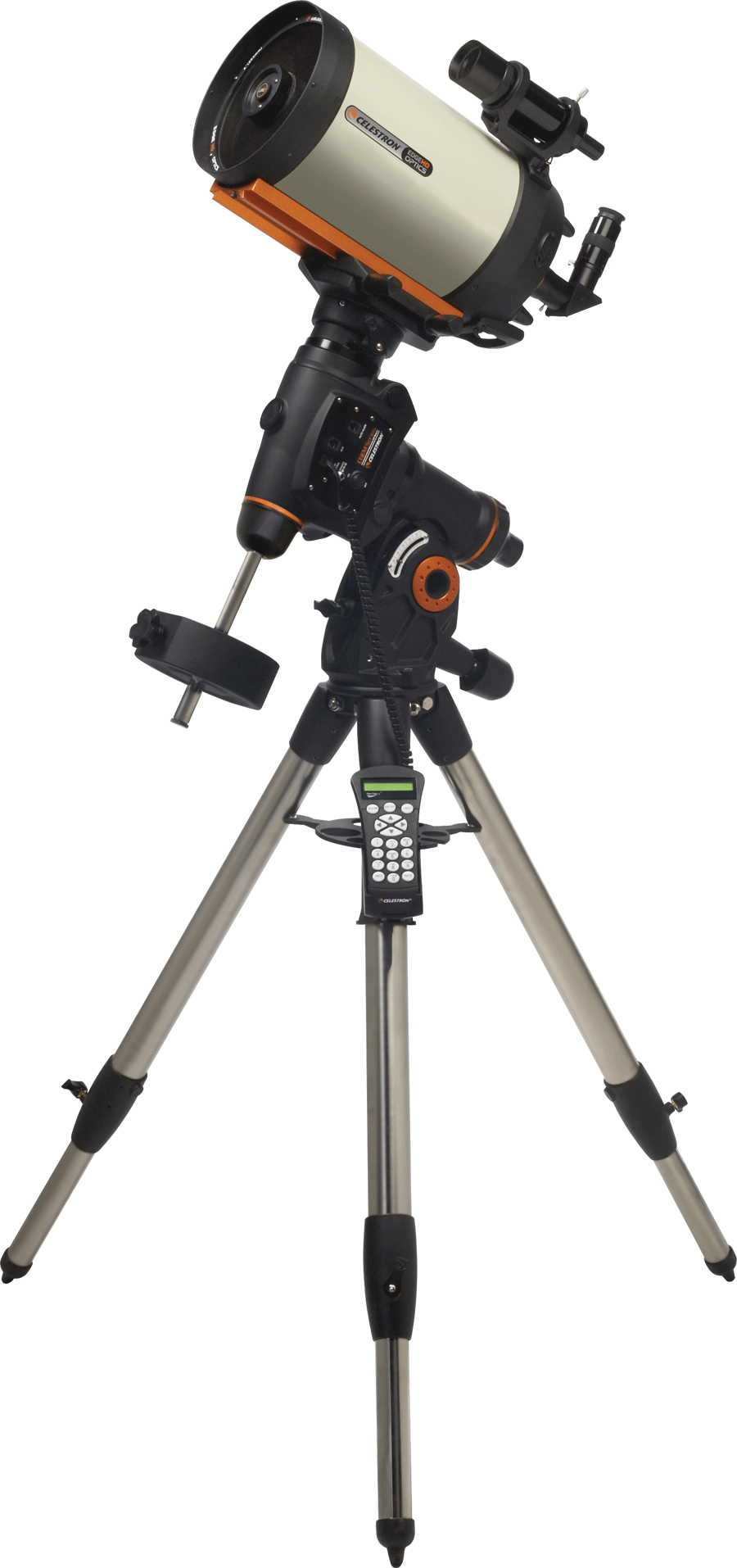

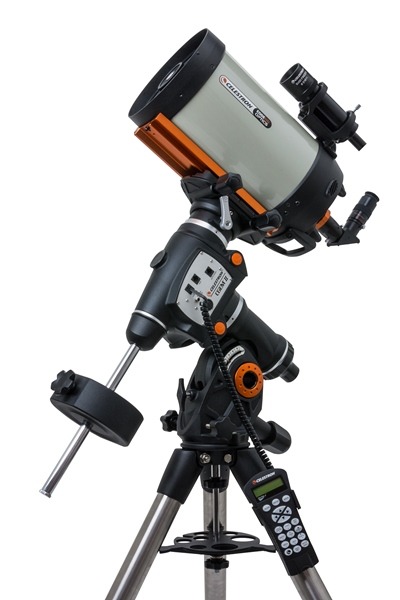

Celestron CGEM II 800 HD

Algemene kenmerken

  • 8 inch EdgeHD Optics.
  • CGEM II Computer gestuurde Equatoriale montering.
  • Celestron’s premium StarBright XLT coatings.
  • 9×50 zoeker, als hulpmiddel om de objecten te vinden.
  • Extra stevige 2 inch dikke stalen driepoot maat accessoire plaat.

HD kenmerken

  • Nieuw aplanatic Schmidt telescope ontwerp, welke een aberration-free beeld produceert over een heel breed gezichtsveld.
  • Mirror tension locks houdt de primary spiegel op zijn plek en vermijd beeld verschuiving.
  • Koeling ventilatoren welke de hete lucht achter de hoofdspiegel wegsluisen.
  • Fastar compatible for fast f/2 imaging.
Optical Design: EdgeHD Optics
Opening: 203.2 mm (8 in)
Brandpunt: 2032 mm (80 in)
Focal Ratio: 10
Zoeker: 9×50
Montering: CGEM II Computerized Equatorial
Optical Tube: Aluminium
Optical Coatings: Starbright XLT Coating
Oculair 1: 40 mm (1.57 in)
Vergroting 1: 51 x
Star Diagonal: 1.25″
Driepooot: Adjustable, Stainless Steel
CD ROM: NexRemote control software with RS232 cable
Power Supply: Car battery adapter
Highest Useful Magnification: 480 x
Lowest Useful Magnification: 29 x
Limiting Stellar Magnitude: 14
Eyepiece 1 Field of View: 0.84 °
Light Gathering Power: 843 x
Secondary Mirror Obstruction: 2.7 in (68.58 mm)
Secondary Mirror Obstruction by Area: 11.4 %
Secondary Mirror Obstruction by Diameter: 33.8 %
Resolution (Rayleigh): 0.69 arcsec
Resolution (Dawes): 0.57 arcsec
Gear: Steel worm gear and 90mm pitch diameter brass worm wheel
Motor Drive:Low cog DC Servo motors with encoders, both axes
Computer Hand Control: Double line, 16 character Liquid Crystal Display; 19 fiber optic backlit LED buttons
Slew Speeds: Nine slew speeds: 5 °/sec, 2 °/sec, 1 °/sec, 64x, 16x, 8x, 4x, 1x, .5x
Tracking Rates: Sidereal, Solar and Lunar
Tracking Mode: EQ North and EQ South
Alignment Procedures: 2-Star Align, Quick Align, 1-Star Align, Last Alignment, Solar System Align
Software Precision: 24bit, 0.08 calculation
Database: 40,000+ objects, 100 user defined programmable objects. Enhanced information on over 200 objects
Power Requirements: 12 VDC 1.5 Amp
GPS: Optional CN16 Accessory
Counterweights: 1 x 17 lb
Optical Tube Length:17 in (431.8 mm)
Telescope Weight: 88 lb (39.92 kg)

Specifications general

State:
Nieuw

Brand:
Celestron

Series:
CGEM II

Part number Ganymedes:
C12017

Part number manufacturer:
12017


Specifications product

Aperture (mm):
203.2

Focal length (mm):
2032

Speed ​​(f):
10

Maximum meaningful magnification (x):
480

Minimum meaningful magnification (x):
29

Maximum resolution (arcsec/pixel):
0.57

Image circle (mm):
Onbekend

Limiting magnitude:
14

Coatings:
Starbright XLT

Mount:
Equatoriaal

GOTO:
Ja

Focuser type:
Overige

Focuser size:
Niet van toepassing

Focuser rotatable:
Niet van toepassing

Focuser fine adjustment:
Nee 1 op 1

Color:
Wit

Type:
Schmidt–Cassegrain

Type of optics:
Catadioptrisch

Tube material:
Aluminum

Tube weight (kg):
6.35

Tube length (mm):
432

Tube diameter (mm):
238

Supplied viewfinder:
Ja

Included eyepieces:
40 mm

Supplied diagonal:
Ja

Supplied tripod/mount:
Ja


Application

Suitable for astrophotography:
Uitstekend

Suitable for moon and planets:
Uitstekend

Suitable for nebulae and galaxies:
Uitstekend

Suitable for sun:
Onbekend

Suitable for panorama or penthouse:
Matig

Suitable for children:
Nee

Suitable for novice user:
Nee

Suitable for advanced user:
Ja
