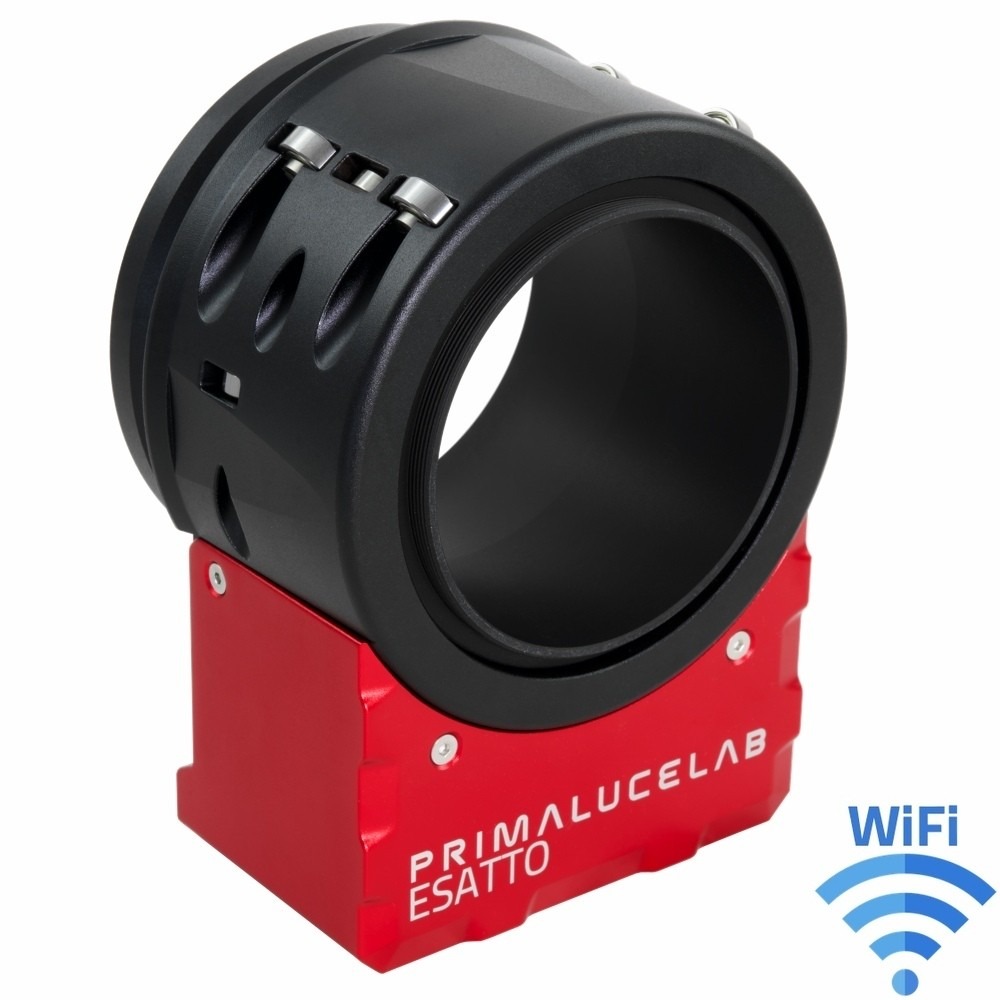

PrimaLuceLab ESATTO 3 inch robotic microfocuser
ESATTO robot microfocuser is ook beschikbaar in een grotere 3 inch-versie: 76 mm vrije opening, 25 mm trekbuis, 8 kg laadvermogen en een ongelooflijke resolutie van 0,04 micron per stap! De perfecte oplossing voor apo-chromatische refractors en Ritchey-Chretien of Cassegrain-telescopen en met grote camera’s en accessoires zoals off-axis guiders, filterwielen en adaptieve optica.
En je kunt ESATTO-functies ook uitbreiden door de ARCO robot camera rotator toe te voegen!
ESATTO 3 inch is de robot microfocuser, perfect voor veel telescopen zoals grote refractors, Ritchey-Chretiens of Cassegrains!
ESATTO is specifiek ontworpen voor astrofotografie, maar dankzij specifieke technologieën ontwikkeld door PrimaLuceLab, heeft het ook de Virtual HandPad met WiFi-bediening vanaf smartphone of tablet. Vergeet externe controllers en omslachtige handpads – ESATTO is de ALL-IN-ONE focuser die alle functies heeft waar je van gedroomd hebt in een compact, stevig ontwerp.
Let Op! De juiste adapters dienen besteld te worden om de ESATTO goed aan te kunnen sluiten op je telescoop en je accessoires. Neem hiervoor contact op met Ganymedes.
Tekst van PrimaLuceLab volgt hieronder.
ESATTO 3″ is the robotic microfocuser perfect for many telescopes like large refractors, Ritchey-Chretiens o Cassegrains! ESATTO is specifically designed for astrophotography but, thanks to specific technologies developed by PrimaLuceLab, it also has the Virtual HandPad with WiFi control from smartphone or tablet. Forget about external controllers and cumbersome hand pads – ESATTO is the ALL-IN-ONE focuser that has all the features you’ve dreamed of in a compact, sturdy focuser design.

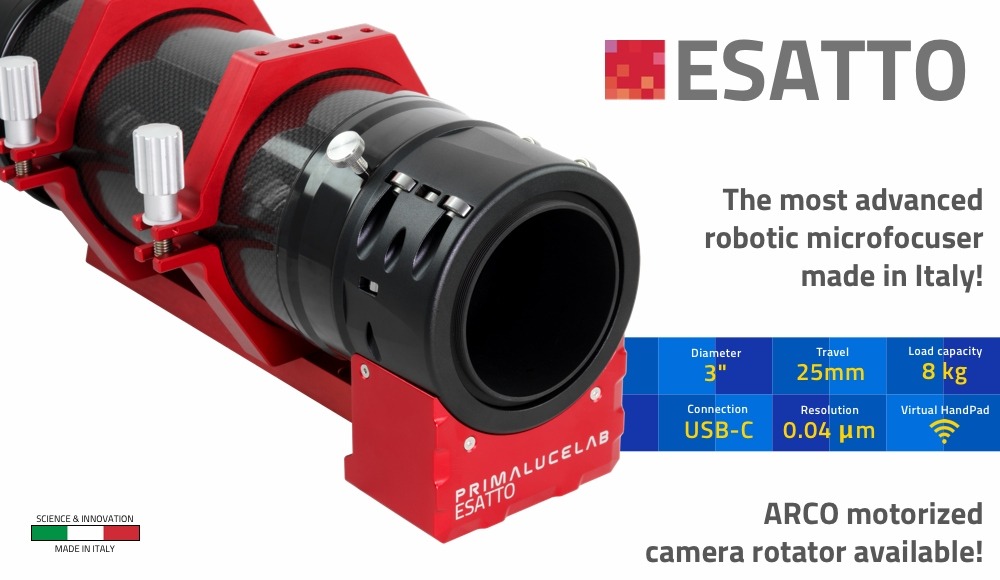

ESATTO 3” robotic microfocuser – main features:
– Crayford style focuser with 28 ball bearings, specially designed for very high load capacity (up to 8 kgs) with no flexure.

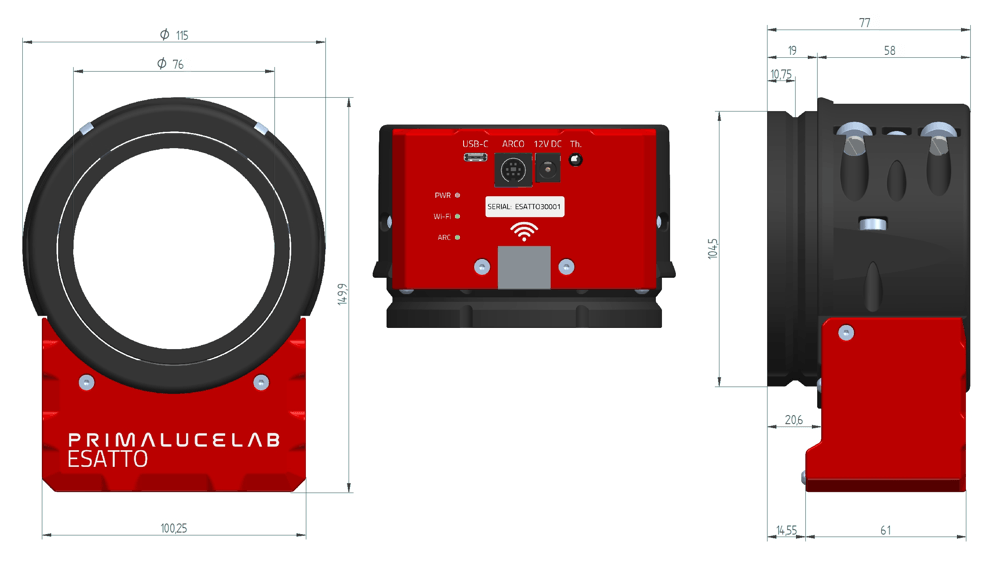

– Low profile design with only 77mm thickness.
– 25mm focuser travel with an incredible resolution of 0.04 microns per step!
– Special adapters to easily connect to many different telescopes.
– Remotely controlled from EAGLE or any Windows computer, with dedicated control software or ASCOM drivers.

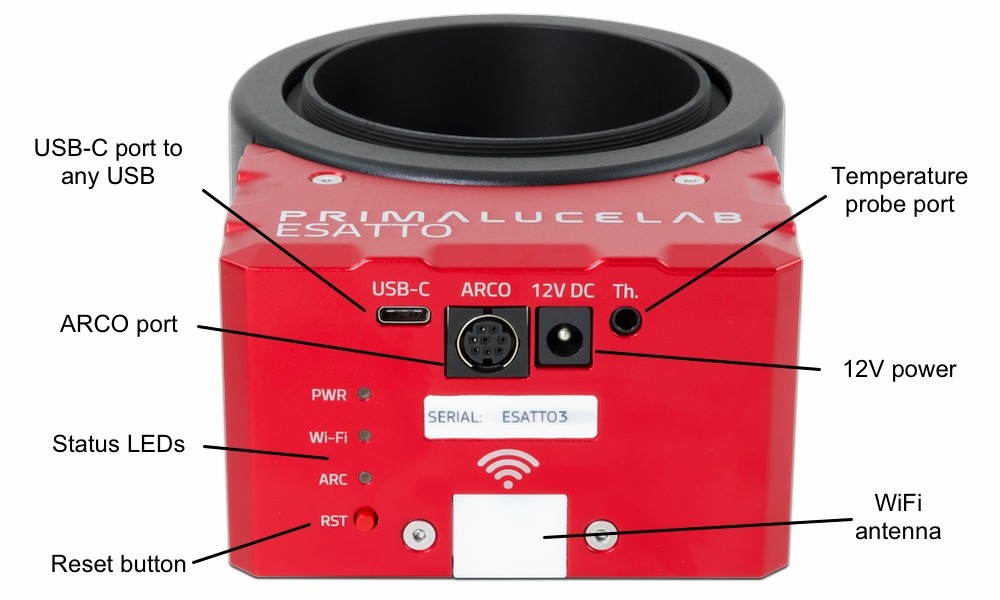

– USB-C connector offering greater reliability and can be connected to any USB type port thanks to the included cable.
– Remote control with WiFi from any smartphone, tablet or computer and ESATTO Virtual HandPad app also for visual use!
– Many camera threaded adapters with stop ring on the camera side to rotate and keep the camera in the optical axis.
– ARCO port to easily connect the ARCO camera rotator to the ESATTO without the need for additional data or power cables.
– Weight: 1345 gr.
Large diameter for more free aperture and weight load capacity

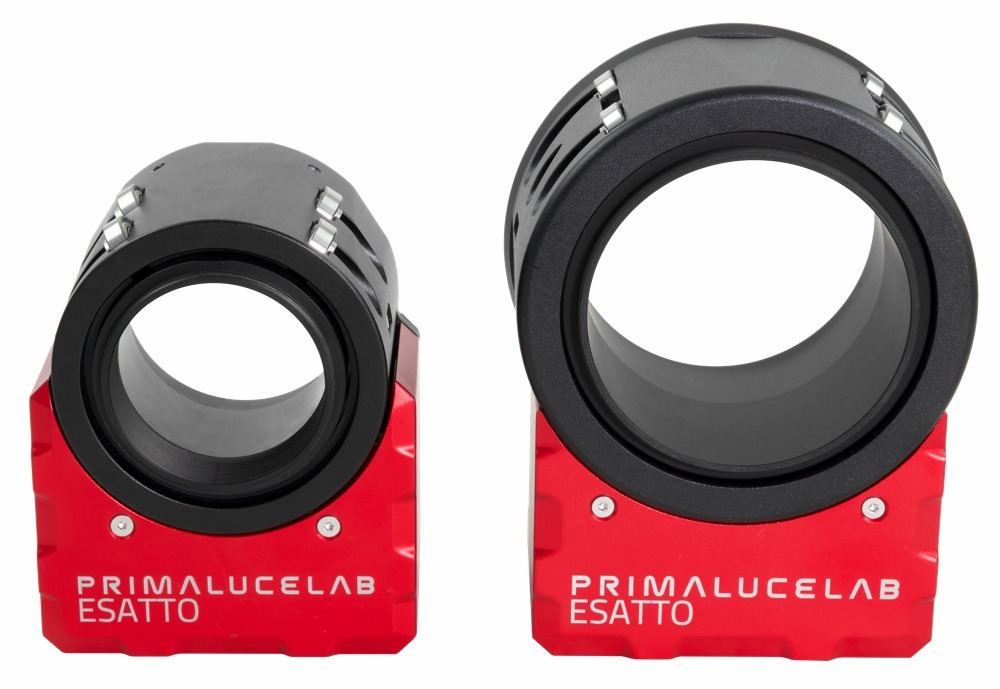

Compared to the 2″ model, ESATTO 3″ offers a greater free aperture (76mm against 51mm of ESATTO 2″) so it is perfect for astrophotography with telescopes such as large apochromatic refractors, Ritchey-Chretien or Cassegrain and heavy cameras with accessories like off-axis guiders, filter wheels and adaptive optics. The large free aperture also allows the use of special focal reducers or correctors. A special design with 28 bearings allows to increase the load capacity to 8 kg.
The best performance in a micrometric focuser
ESATTO 3″ has all the advanced features included in the ESATTO focusers: connection to Windows control computer (or EAGLE) with a robust USB-C port (you can connect ESATTO to any USB port thanks to the cable included in the package), control and setting software with ASCOM driver to use also with any astrophotography software, remote control via WiFi using the dedicated ESATTO Virtual HandPad app (to control it even without a computer).

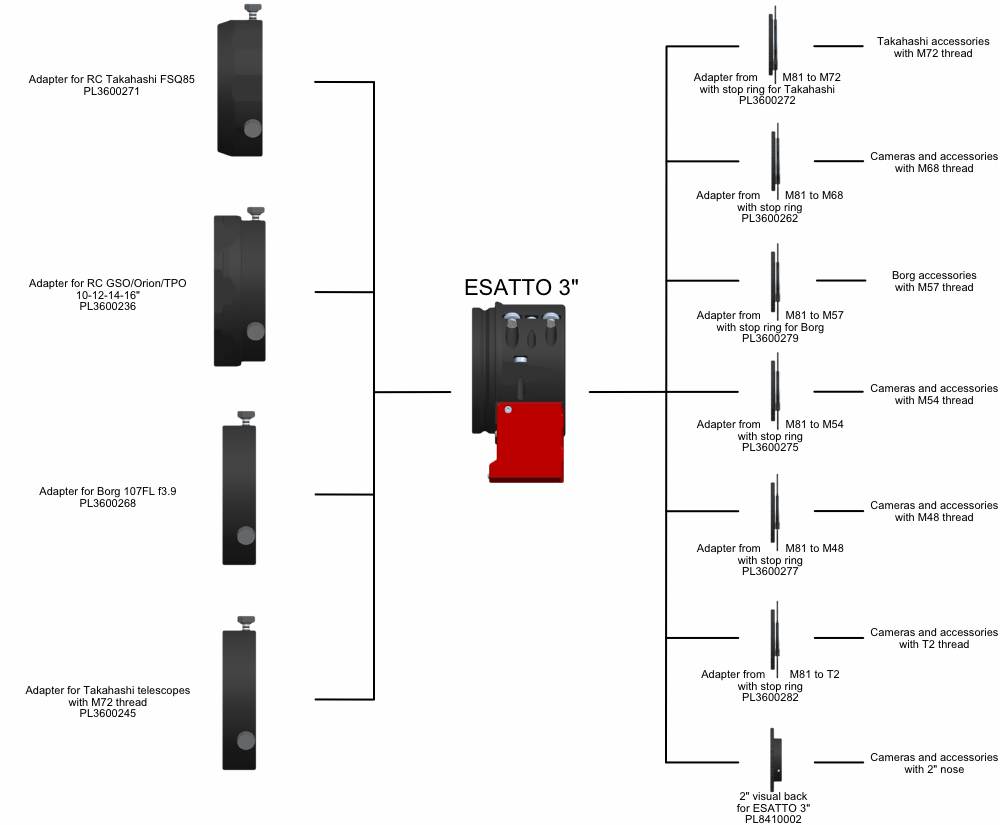

Many adapters for the PrimaLuceLab ESATTO 3 inch robotic microfocuser are available to connect to many telescopes and cameras:
We know that a perfect focuser is nothing without a solid connection to the camera. That’s why, instead of using a normal 2″ visual back, ESATTO 3″ offers a M81x0.75 male thread and, through a complete series of optional camera adapters with stop ring, it allows you to directly connect the most common DSLR, mirrorless and CCD or CMOS cooled cameras directly at the focuser. The stop ring allows you to lock the camera at a precise angle to better frame the object to be photographed. The stop ring adapters are available in many different sizes: this way you can connect, with maximum rigidity and comfort, any camera or accessory. We have also prepared several adapters to connect ESATTO 3″ to many telescopes!
