iOptron SkyGuider Pro Camera Mount Head set

iOptron SkyGuider Pro iPolar set

 669,00

iOptron SkyGuiderTM Pro iPolar set, compacte star tracker van iOptron. Licht van gewicht, makkelijke mee te nemen, past op ieder fotostatief. Nu met iPolar, dit is een ingebouwde camera die je helpt bij het op de pool ster richten van je montering.

1 op voorraad (kan nabesteld worden)

Type:
Star Tracker
Volgsysteem:
Volledig automatisch (RA+DEC)
GOTO:
Ja
GPS:
Nee
Draaggewicht visueel (kg):
5
Draaggewicht astrofotografie (kg):
5
Encoders:
Nee
Interface:
USB
 669,00
1 op voorraad
Levertijd: 1 tot 3 werkdagen
Artikelnummer: i3550A Categorieën: , , ,
Fysieke winkel
100% veilig winkelen
Ruime voorraad
Brengservice

Beschrijving

iOptron SkyGuider Pro iPolar set

Having difficulty to polar align, especially in Southern Hemisphere? We have a solution: SkyGuider Pro with built-in iPolar!

The SkyGuiderTM Pro — iOptron’s next generation camera tracking device! Leading the camera tracker market for nearly four years, iOptron’s SkyGuider Pro pushes closer to perfection.

The redesigned SkyGuiderrTM Pro mount head is more compact, small enough to fit on your palm, better precision, silent tracking, built-in rechargeable power source, ST-4 guiding port and camera trigger port. The improved precision polar scope maintains a fine engraved reticule, now features adjustable illumination with different brightness levels. Using with our iOS app, quick and accurate polar alignment is just a joy. The DEC mounting bracket allows you to balance a heavy camera and/or lens better, or even mount a light telescope. The optional 8408 hand controller allows you to check the Pole Star position for the polar alignment, slew the mount, adjust the guiding rate, change the mount settings and control the camera trigger.

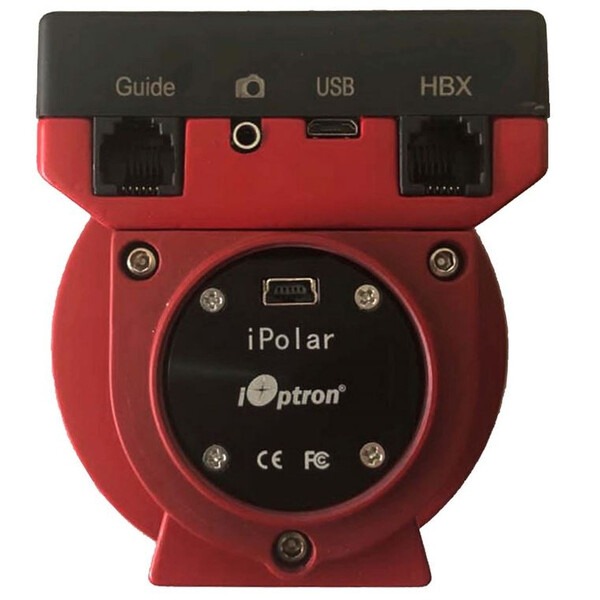

This mount has an integrated electronic polar finder scope known as the iPolar. This tool ensures the accurate alignment of a telescope, even when the pole star is obscured. There are large levers on the quick-lock drive engagement system; these large levers make it easy to snap the gears into place.

The SkyGuiderTM Pro features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres. We have also added a quick slew mode with both forward and reverse to help quickly reframing your image without disrupting the cameras position.

We have made big improvements on the SkyGuiderTM Pro’s removable alt-azimuth base, which features a precision bubble level, degree markings for the altitude and a built in post for the azimuth control. You can also mount the SkyGuiderTM Pro head (without the base) directly to any standard photographic tripod with 1/4” or 3/8” threads.

The DEC mounting bracket package, which includes DEC mounting bracket, counterweight shaft, counterweight and Vixen-type dovetail saddle, makes the SkyGuideTM Pro mount suitable for a heavier camera/lens system, even a lightweight telescope.

The SkyGuiderTM Pro is certainly a must have tool for any photographer interested in astroscape or wide field astrophotography.

Levering van de iOptron SkyGuider Pro iPolar set omvat:

  • SkyGuiderTM Pro camera mount
  • Build in iPolar
  • Alt-azi base (installed)
  • AccuAlignTM dark field illuminated polar scope (installed)
  • Micro USB charging cable
  • Padded carry bag
  • DEC mounting bracket w/ camera mounting disk
  • 1.35kg counterweight
  • CW shaft
  • One Year Limited Warranty (90 day on battery)

Kenmerken van de iOptron SkyGuider Pro iPolar set:

  • All metal mechanical structure
  • Attaches to a camera tripod with 3/8” or 1/4” threads
  • Payload 11 lbs (5kg) (balanced, with DEC mounting bracket, exclude CW)
  • Silent tracking for smooth camera motion, perfect for long-term exposures
  • Detachable alt-azi base with fine latitude and azimuth adjusters for easy polar alignment
  • Includes iOptron iPolarTM electronic polar scope
  • 4 tracking speed (1X, 1/2X, solar and lunar). 1X celestial tracking for imaging the sky and stars; 1/2X tracking speed for imaging both the starry night and the landscapes at the same time
  • Operation in both northern and southern hemisphere
  • Quick slew (144X) for camera framing adjustment
  • Built-in rechargeable battery for up to 20 hours of operation (20°C)
  • Built-in ST-4 autoguiding port
  • HBX port for external hand controller
  • Micro USB port for power, charging and firmware upgrade
  • Built-in shutter triggering port
  • Padded carry bag included
  • DEC mounting bracket
  • Counterweight and CW shaft
  • Vixen dovetail saddle for scope mounting
  • Optional ball heads available separately (#3305A)
  • Optional tripod (#3221)
  • Optional Go2Nova® 8408 hand controller (#8408)
  • Optional DSLR camera shutter trigger cable

Specificaties van de iOptron SkyGuiderTM Pro Camera Mount Head set:

Mount Compact single axis tracking EQ
Payload (Max.) 11 lbs (5 kg), balanced
Mount weight 2.2 lbs (1 kg) with battery
Mount weight with base 3.2 lbs (1.45 kg) with battery
Body material All metal
RA shaft Φ35 mm, steel
Worm wheel Φ88 mm, 144 teeth aluminum alloy
R.A. worm Φ15.2 mm, brass
Bearing 4 pieces
Motor drive DC servo motor with optical encoder
Tracking R.A. automatic
Tracking speed Solar, Lunar, Cel, 1/2 Cel, and N/S
Fast slew speed 144X, forward and reverse
Guiding port ST-4 compatible
Polar scope AccuAlign TM dark field illuminated (~6º FOV)
Camera trigger Yes
Hand controller Yes (with optional 8408 HC)
Power Requirement Internal rechargeable battery
Battery type Li-Poly, 3.7V, 2000mAh
Duration of operation Up to 20 hours at 20ºC
Power charge port Micro USB (5V), 80% charge in 5 hours
Camera mounting block Φ62 mm, 3/8″ post thread
Body base connection Vixen dovetail, 3/8” socket (1/4” converter)
Alt-Azi adjustable base Vixen style saddle, 3/8” socket
Alt-Azi adjustable base diameter Φ80 mm
Latitude adjustment range -30º ~ 65º (with alt-azi base)
Azimuth adjustment range ±5º
Level indicator Level bubble
Body dimension 133x115x95 mm (w/o alt-azi base)
Counterweight shaft Φ20×200 mm w/ 3/8”-16 threads
Counterweight 1.35kg
Firmware upgrade Yes (via USB port)
Operation Temperature -10ºC ~40ºC
Warranty One year limited (90 day on battery)

Specificaties algemeen

Staat:
Nieuw

Merk:
iOptron

Serie:
SkyGuider

Garantie:
2 jaar

Artikelnummer Ganymedes:
i3550

Artikelnummer fabrikant:
3550


Specificaties product

Type:
Star Tracker

Volgsysteem:
Volledig automatisch (RA+DEC)

GOTO:
Ja

GPS:
Nee

Draaggewicht visueel (kg):
5

Draaggewicht astrofotografie (kg):
5

Encoders:
Nee

Interface:
USB

WiFi:
Nee, optioneel beschikbaar

Handcontroller:
Nee, optioneel beschikbaar

Kabel management:
Ja

Statief/driepoot meegeleverd?:
Nee

Statief/driepoot materiaal:
Niet van toepassing

Contragewicht meegeleverd?:
Ja

Contragewicht gewicht (kg):
1.35

Poolzoeker meegeleverd?:
Ja

Accessoire tray meegeleverd?:
Niet van toepassing

Koffer meegeleverd?:
Onbekend

Level indicator:
Onbekend

ST4 aansluiting:
Ja

Kleur:
Rood

Gewicht montering (zonder statief) (kg):
1.45

Voeding:
12v direct

Voeding via batterij:
Ja

Geschikt voor astrofotografie:
Uitstekend


Toepassing

Geschikt voor kinderen:
Nee

Geschikt voor beginnende gebruiker:
Ja

Geschikt voor gevorderde gebruiker:
Ja
