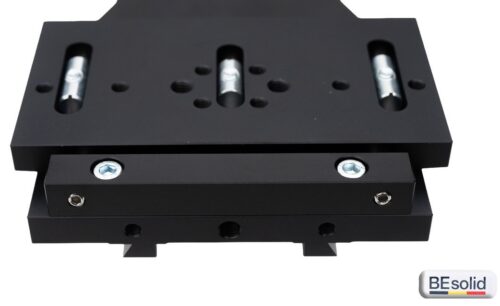

Easy alignment system for dual telescope setup
With the Besolid Alignment plate dual system or side by side plate you can easily align your second telescope on your main telescope. This way you make sure that both telescopes are aligned exactly on the same object. Normally with a side by side setup one telescope is a little bit compared to the other. Besolid has the best solution, easiest to adjust and hold the position.
With basically 2 screws for horizon and vertical adjustment you can adjust very precise your telescope to the exact position.
This precision-engineered alignment device is designed to accurately synchronize two telescopes mounted on a single mount. It enables both optical tubes to be perfectly aligned so they point at the exact same position in the sky.
Using fine adjustment controls, the system allows users to precisely match the optical axes of both telescopes. Once aligned, the same celestial object will appear centered in both fields of view simultaneously, making it ideal for parallel observing, astrophotography setups, or guiding applications.
Constructed from high-quality materials for stability and durability, this alignment system ensures consistent performance and minimal drift, even during extended observing sessions.
Key Features:
- Precise dual-telescope alignment on a single mount
- Fine adjustment mechanisms for accurate optical axis matching
- Ensures identical field-of-view centering in both telescopes
- Robust and stable construction
- Ideal for visual observing, imaging, and guiding setups
Measurements:
- 350 mm long
- 135 mm wide al the widest position
- 100 mm wide at the smallest position
- 20 mm thick
- On both sides and in the middle different holes for mounting your dovetail clamp (not included)
- M8 and M6 wholes with thread
- On 1 side the fine adjustment mechanism
Delivery of the Besolid Alignment plate dual system contains
- Losmandy style dovetail
- 1 Adjustment mechanism
- 1 plate for between the adjustment mechanism and dovetail clamp
- Extra set of adjustment screws
