DeepSkyDad RedCat motor focus kit AF3 FP (full package)
The newcomer in the family of the cat autofocuser. With the extension block (3D printed or aluminium), we raised the telescope just high enough to snugly fit the motor between the telescope and the dovetail.
This results in a balanced, compact solution, leaving ring available to other accessories, like William Optics guide scope plate that comes with the SpaceCat. Our kit is compatible with 110 and 210 dovetails that come with the cat telescopes

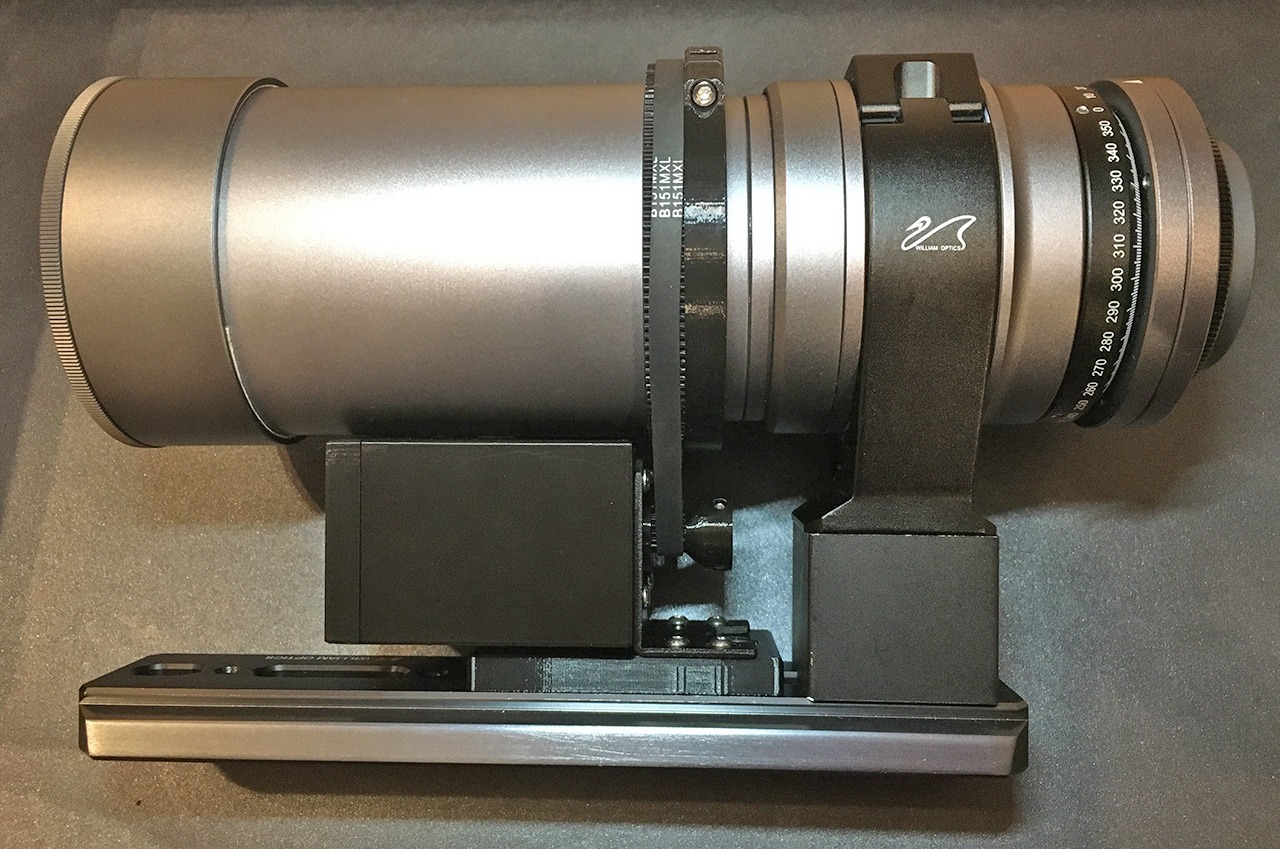

DeepSkyDad motor focus mounted on the SpaceCat from William Optics. Same mounting is for the RedCat second edition. With the extension block they raise the Cat up and get space for the motor. For the total balance of the scope this is probably the best solution for it. And still you have the tube ring where you can mount an accessory to it.

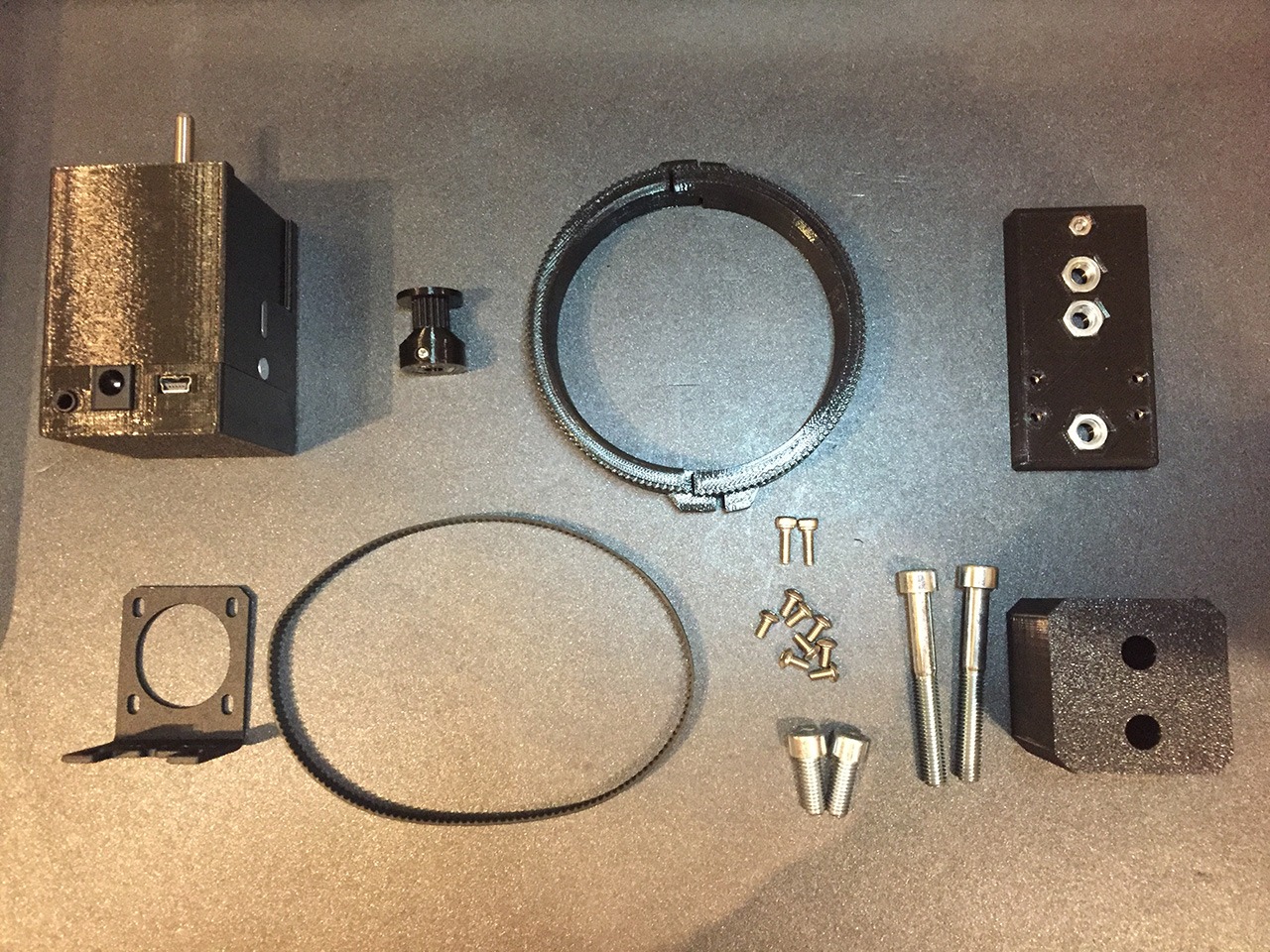

The kit contains the items in the picture on the left. There are some extra items available for this kit. Aldo Ganymedes delivers only the full package so the items are with the set.
This AF3s full package kit will fit on the second edition of the William Optics Redcat, SpaceCat is already a limited second edition version.
The total package of the DeepSkyDad RedCat motor focus kit AF3 FP (full package) contains:
- 1 x AF3s unit
- 1 x 3D printed 16T MXL pulley
- 1 x 3D printed helical focuser MXL ring
- 1 x 3D printed mounting plate (compatible with both 110 and 210 dovetails)
- 1 x NEMA 14 L bracket
- 1 x MXL timing belt
- 2 x 10 mm M3 bolt (for ring)
- 8 x 6 mm M3 bolt (for L bracket)
- 2 x 16 mm M6 bolt (for mounting plate)
- 2 x 50 mm M6 bolt (for extension block)
- 1 x 3D printed extension block

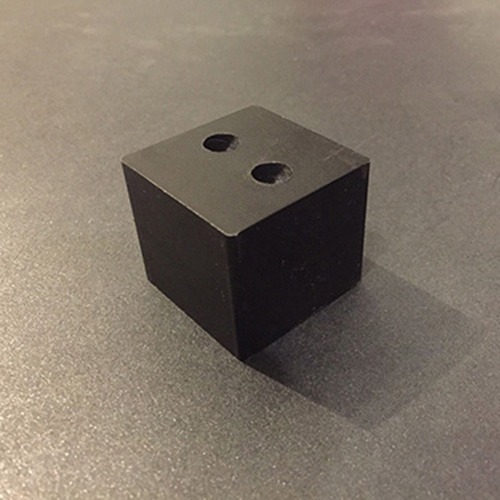

- Alu extension block

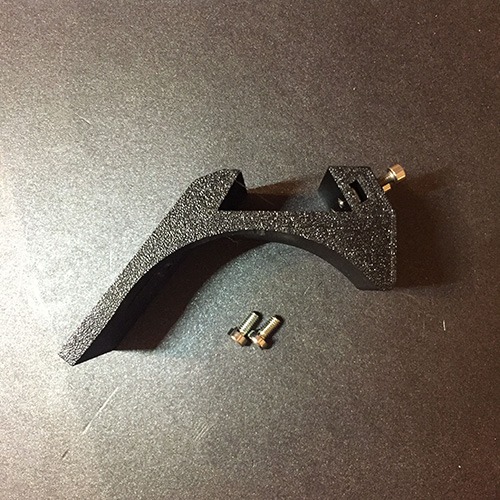

- v1 ring guide scope shoe

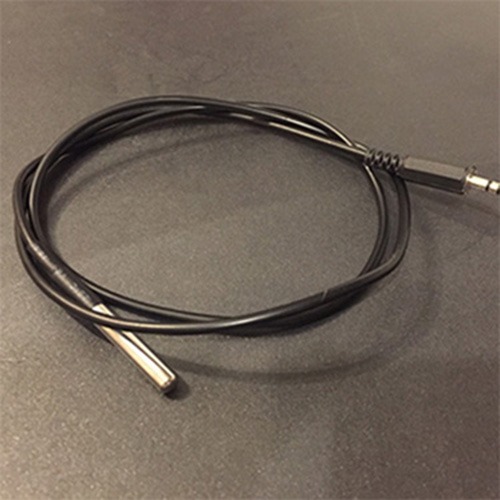

- temperature sensor

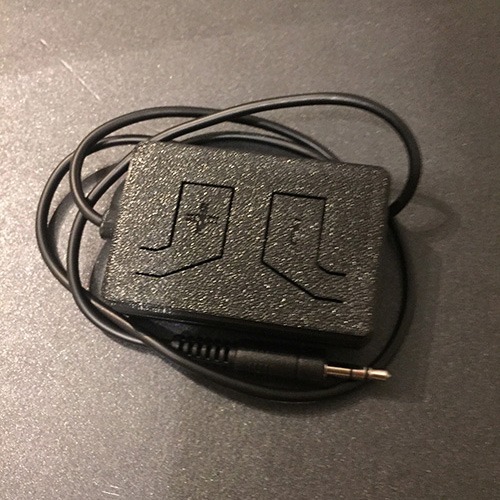

- manual hand controller
