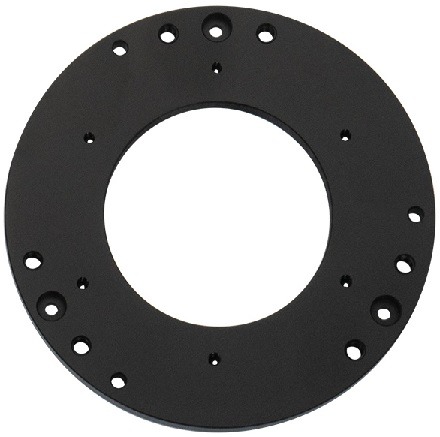

ZWO M48 sensor tilt adapter

 49,00

Adapter for mounting a full frame or APS-C sensor size ZWO camera on the ZWO off axis guider large, this adapter has M48 x 0.75 female thread. This adapter also offers the possibility to perform a tilt correction.

Please contact us if you have any questions about the exact operation and/or connection options of this adapter.

In stock (can be backordered)

Type:
Adapters
M48:
Yes
Thickness (mm):
5
 49,00
8 op voorraad
Available
SKU: ZWO M48-Plate Categories: , , ,
Physical store
100% safe shopping
Large stock
Delivery service

Description

M48 tilt adapter suitable for the ZWO off axis guider large

The ZWO M48 sensor tilt adapter was independently developed by ZWO and specially made to match a telescope with M48 screw thread. The thickness is 5 mm. It has multiple screw holes on the surface so you can easily connect it to the M68 OAG and/or an APS-C & full frame camera, some examples are (in combination with):

This adapter is suitable for mounting on the ZWO OAG-L.

Below is a schematic representation of how to configure the image train in combination with this adapter.

ZWO M48 sensor tilt adapter
Connection diagram for the ZWO tilt adapter
ZWO M48 sensor tilt adapter
Technical drawing of the ZWO tilt adapter

Delivery of the ZWO M48 sensor tilt adapter includes:

  • Tilt adapter with M48 x 0.75 thread

Place your order online or visit the store

Have you found what you are looking for and do you want to order the ZWO M48 adapter, for example? Then you can do this very easily online. Would you rather see these products in person before buying them? That is also possible with us. You are most welcome in our showroom in Amstelveen from Monday to Friday between 10:00 and 17:00. The showroom is also open on Saturdays, but from 10 a.m. to 4.30 p.m. For more information and advice you can also contact us by phone on 020-6412083. We are happy to help you.

Specifications general

State:
New

Brand:
ZWO

Series:
Tilt adapter

Warranty:
2 years

Part number Ganymedes:
ZWO M48-Plate

Part number manufacturer:
ZWO M48-Plate


Specifications product

Type:
Adapters
M48:
Yes
Thickness (mm):
5
