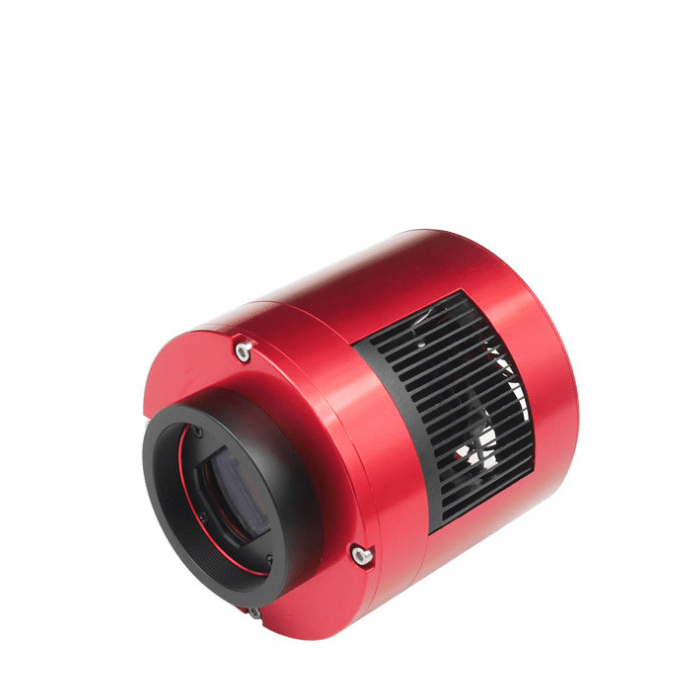

ZWO ASI 294MC-PRO cooled (colors) 4144×2822

 1.199,00

Betaal de eerste termijn direct via iDEAL. De tweede en derde termijn betaal je binnen 30 en 60 dagen. Zonder rente, zonder BKR-registratie! Klik voor meer informatie

Color camera from ZWO which is often used in combination with an SCT telescope, but can of course also be very suitable for a refractor. Read more below!

In stock (can be backordered)

Sensor kind:
CMOS
Sensor size:
4/3"
Sensor dimensions:
19.1 x 13.0
Sensor type:
IMX294
Sensor diagonal (mm):
23.2
Color or Mono:
Color
Megapixels (M):
11.7
Resolution:
4144X2822
 1.199,00
7 op voorraad
Available
SKU: ZWO-ASI294MC-P Categories: , , ,
Physical store
100% safe shopping
Large stock
Delivery service

Description

Introduction of the ZWO ASI 294 MC-PRO cooled (colors) 4144×2822

The ZWO ASI 294 MC-PRO has set a new standard in the world of astrophotography. Whether you are interested in deep sky astrophotography or photography of the sun and planets; this camera can handle anything. Not many cameras can do what the ZWO ASI 294 MC-PRO can do!

The ZWO ASI 294 MC-PRO: a camera with exceptional qualities

The ZWO ASI 294 MC-PRO is one of the most popular cameras at the moment, with which great results are achieved. For example, it is the first camera in the world to be equipped with the latest sensor from SONY, the IMX294CJK. It has a high-sensitivity type 4/3 CMOS image sensor, which provides 4K support for astronomical cameras and industrial applications. The camera also delivers exceptional performance in low light. Furthermore, the ZWO ASI 294 MC-PRO has a DDR memory buffer, a 14-bit ADC and 13-stops DR and an HCG mode.

Specifications of the ZWO ASI 294MC-PRO cooled (colors) 4144×2822:

  • Sensor: 4/3″ SONY IMX294 CMOS
  • Diagonal: 21.6mm
  • Resolution: 11.3Mega Pixels 4144X2822
  • Pixel Size: 4.63µm
  • Bayer Pattern: RGGB
  • Shutter: Rolling shutter
  • Exposure Range: 32µs-2000s
  • ROI: Supported

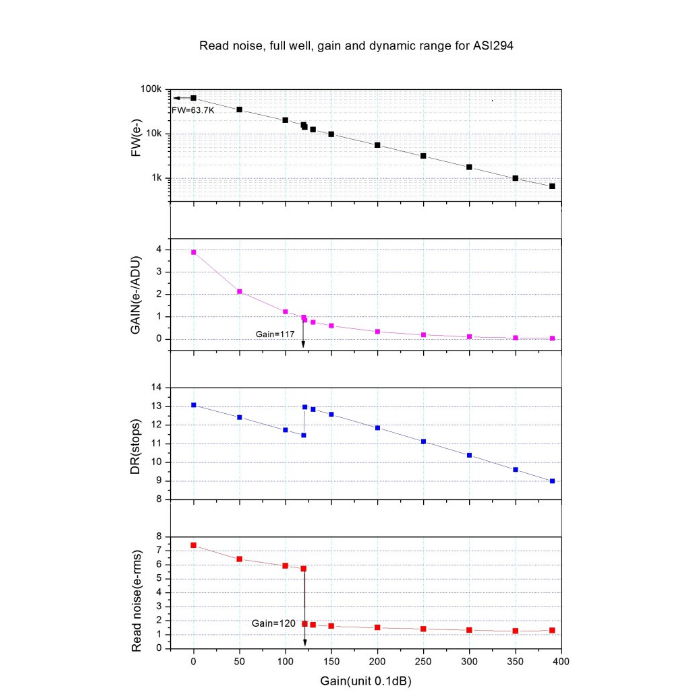

  • Read Noise: 1.2e @39db gain
  • QE peak: TBD
  • Full well: 63.7ke
  • ADC:14bit
  • Interface: USB3.0/USB2.0
  • Adapter: M42X0.75
  • Protect window:AR window

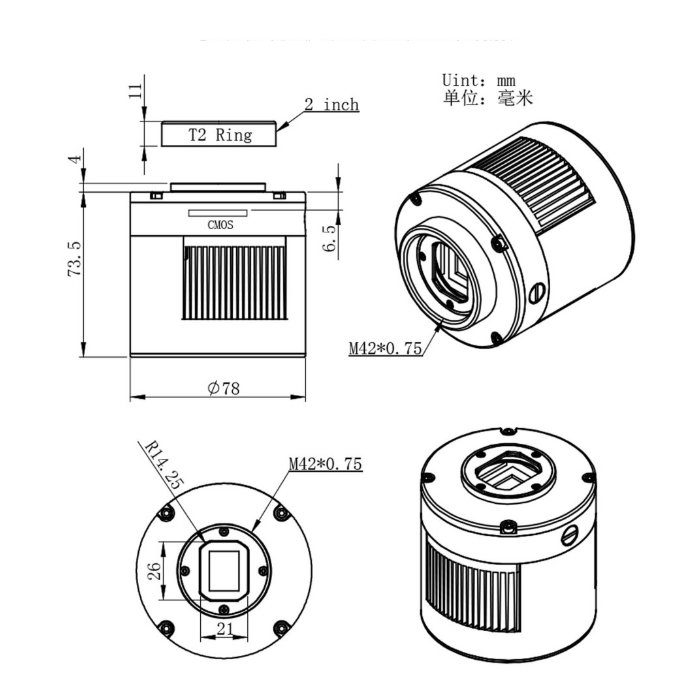

  • Dimensions: 78mm Diameter
  • Weight: 410g
  • Back Focus Distance: 6.5mm
  • Cooling: Regulated Two Stage TEC
  • Delta T: 35°C below ambient
  • Camera Power Consumption: 650mA at 5V
  • Cooler Power consumption: 12V at 3A Max
  • Working Temperature: -5°C—45°C
  • Storage Temperature: -20°C—60°C
  • Working Relative Humidity: 20 %—80%
  • Storage Relative Humidity: 20 %—95%
  • Max FPS at full resolution:
  • 10 Bit ADC
  • 4144×2822 19fps
  • 14bit ADC
  • 4144×2822 16fps
  • more resolutions are in software, support customize resolution.

Place your order online or visit us in Amstelveen

The ZWO ASI294MC-PRO is a perfect choice if you’re looking for a high-quality camera that also performs exceptionally in low light. You can easily order the ZWO camera online at Ganymedes. You are also welcome in our showroom in Amstelveen, where you can view and test all our products. Would you like more information about this camera or are you curious about the difference with other ZWO cameras, such as the ZWO ASI 224? Call 020-6412083 and we will be happy to help you.

Specifications general

State:
New

Brand:
ZWO

Series:
ASI294

Warranty:
2 years

Part number Ganymedes:
ZWO-ASI294MC-P

Part number manufacturer:
ASI294MC-P


Specifications product

Sensor kind:
CMOS

Sensor size:
4/3"

Sensor dimensions:
19.1 x 13.0

Sensor type:
IMX294

Sensor diagonal (mm):
23.2

Color or Mono:
Color

Megapixels (M):
11.7

Resolution:
4144X2822

Pixel size (microns):
4.63

Maximum frames per second (FPS):
19

Memory:
256MB DDR3

Number of bits (ADC):
14

Protective glass:
AR window

Shutter:
Rolling shutter

Exposure time:
32µs-2000s

Read noise:
1.2e @39db gain

QE peak:
TBD

Full well:
63.7ke

Active cooling:
Yes

Connection to computer:
USB 3.0

Connection to telescope:
T2

ST4 connection:
Yes

Included adapters:
M42X0.75

Included cables:
12V USB3.0

Diameter (mm):
78

Weight (kg):
0.410

Backfocus (mm):
6.5

Application:
Nebulae and Galaxies

Built-in filter wheel:
No

Power supply:
12v


Application

Suitable for moon and planets:
Moderate

Suitable for nebulae and galaxies:
Excellent

Suitable for sun:
Moderate

Suitable for autoguiding:
Moderate

Suitable for All-Sky:
Moderate

Suitable for children:
No

Suitable for novice user:
Yes

Suitable for advanced user:
Yes
