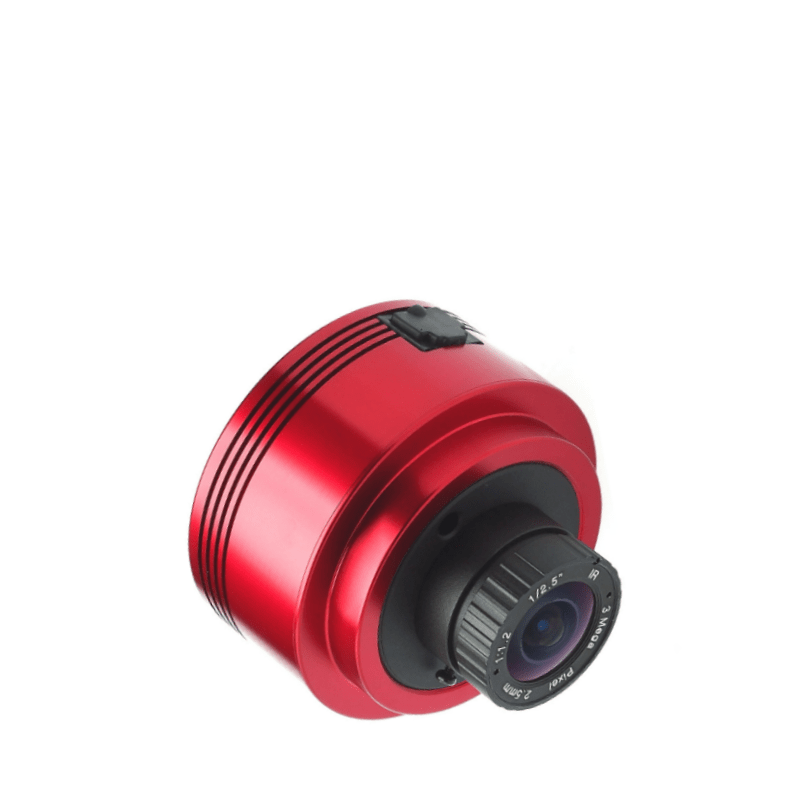

ZWO ASI 224MC (color) 1304×976 3.75µm

 279,95

Betaal de eerste termijn direct via iDEAL. De tweede en derde termijn betaal je binnen 30 en 60 dagen. Zonder rente, zonder BKR-registratie! Klik voor meer informatie

ZWO ASI 224MC (colors) 1304×976 3 75µm

Out of stock

SKU: ZWO-ASI224MC Categories: , , ,
Physical store
100% safe shopping
Large stock
Delivery service

Description

ZWO ASI 224MC (color) 1304×976 3 75µm

The ZWO ASI 224 MC astro color camera has a 1/3″ 1.2 megapixel Sony IMX224 image sensor with Exmor and NIR technology. This relatively small sensor has very low read noise (1.5e), high sensitivity in NIR and the capability of high frame rates, making this CMOS camera a great choice for planetary photographers who want nothing but the highest quality.

The ZWO ASI 224 MC color camera: a star in its price range

While this camera is best suited for planetary photography, it can also be used well for deep sky subjects as it supports a maximum exposure of up to 1000 seconds. Since you don’t have to spend time changing filters and a filter wheel, photography with the ZWO ASI 224 MC color camera is a very simple procedure. If you don’t mind making a small concession, this camera from ZWO is one of the best planetary photography cameras currently available in this price range. The camera will therefore outperform many of the more expensive cameras.

Technical specifications of the ZWO ASI 224MC (color) 1304×976 3 75µm are:

  • Sensor: 1/3” CMOS IMX224/IMX225
  • Resolution: 1.2Mega Pixel 1304X976
  • Pixel Size: 3.75µm
  • Sensor Size: 4.8mm*3.6mm
  • Diagonal: 6.09mm
  • Exposure Rage: 32µs-1000s
  • ROI: Supported
  • ST4 Guider Port: Yes
  • Focus Distance to Sensor: 12.5mm
  • Shutter Type: Rolling Shutter
  • Protect window: AR coated window
  • Operating System Compatibility: Mac, Windows, Linux
  • Interface: USB3.0/USB2.0
  • Bit rate: 12bit output(12bit ADC)
  • Adaptor: 2″ / 1.25″ / M42X0.75
  • Dimension: φ62mm X 36mm
  • Weight: 120g or 4.2 ounces (without lens)
  • Working Temperature: -5°C—45°C
  • Storage Temperature: -20°C—60°C
  • Working Relative Humidity: 20 %—80%
  • Storage Relative Humidity: 20 %—95%
  • Resolution: 1304×976 150fps / 64fps – 1280×960 152.4fps / 65fps – 800×600 241.2fps / 102.9fps – 640×480 299.4fps / 127.6fps – 320×240 577.9fps / 256.4fps
    • More resolutions can be user defined

Click here to view the product page at ZWO

Discover the wonderful world of planets with this camera

If you are fond of photographing astronomical objects, a good camera is indispensable. The ZWO ASI 224 MC astro color camera will not disappoint you. Order this camera easily online at Ganymedes and receive your order quickly at home. Would you rather admire the camera in real life and possibly compare it with other ZWO cameras, such as the ZWO ASI 2600 or the ZWO ASI 120? Then visit our showroom in Amstelveen and we will be happy to advise you. If you have questions about our products or would like advice by telephone, please call 020-6412083.

Specifications general

State:
New

Brand:
ZWO

Series:
ASI224

Warranty:
2 years

Part number Ganymedes:
ZWO-ASI224MC

Part number manufacturer:
ASI224MC


Specifications product

Sensor kind:
CMOS

Sensor size:
1/3"

Sensor dimensions:
4.8 x 3.6

Sensor type:
IMX224/IMX225

Sensor diagonal (mm):
6.09

Color or Mono:
Color

Megapixels (M):
1.2

Resolution:
1304 x 976

Pixel size (microns):
3.75

Maximum frames per second (FPS):
577.9

Memory:
No

Number of bits (ADC):
12

Protective glass:
Unknown

Shutter:
Rolling Shutter

Exposure time:
32µs-1000s

Read noise:
0.75e – 1.5e

QE peak:
Unknown

Full well:
Unknown

Active cooling:
No

Connection to computer:
USB 3.0

Connection to telescope:
1.25

ST4 connection:
Yes

Included adapters:
2″ / 1.25″ / M42X0.75

Included cables:
12V USB3.0

Diameter (mm):
62

Weight (kg):
0.1

Backfocus (mm):
12.5

Application:
Moon and planets

Built-in filter wheel:
No

Power supply:
12v


Application

Suitable for moon and planets:
Excellent

Suitable for nebulae and galaxies:
Moderate

Suitable for sun:
Moderate

Suitable for autoguiding:
Moderate

Suitable for All-Sky:
Moderate

Suitable for children:
No

Suitable for novice user:
Yes

Suitable for advanced user:
Yes
